NISSAN S20

  • HIGH LIFT CAMSHAFT

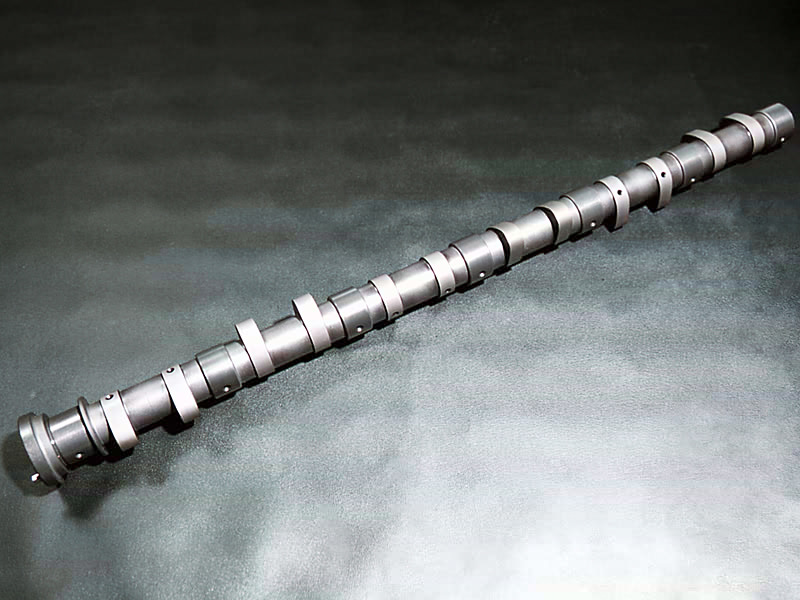

High Lift Camshafts for S20
Spec (unit: mm)   PART # MSRP(yen) REMARKS
Duration Lift VC
72 (288) 9.8 0.30 IN 1004M-N213 JPY116,640
0.30 EX 1004M-N313 JPY116,640
75 (300) 9.8 0.30 IN 1004M-N211 JPY116,640 8L All shaving from a billet material
0.30 EX
78 (312) 10.5 0.30 IN 1004M-N212 JPY116,640
0.30 EX
  • VC = Valve Clearance (cool conditions)
  • Intake and Exhaust camshafts are the same form.
  • A MSRP is the price of one camshaft. One engine needs two camshafts.
  • The height of lift shows the valve lift.
